| MODERNIZATION

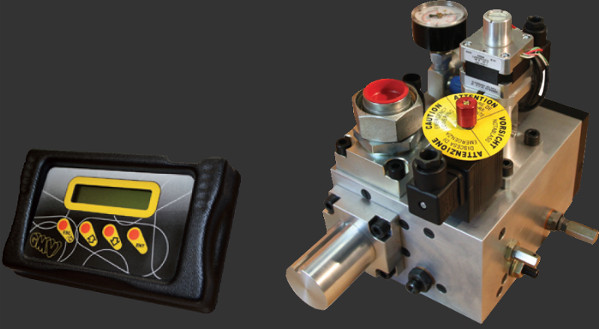

MODERNIZATION KIT FOR OLD NGV

It converts any mechanical valve unit on the market into NGV (digital technology).

Min advantages kit:

Kit installation without changing the power unit.
Kit suitable for all power units up to 210 L/min.
The programming console provides easy adjustments.
Better easier adjustment thanks to the programming console.

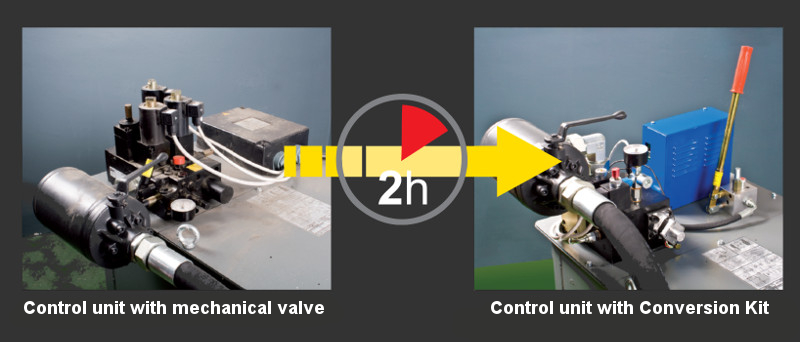

Installation in less than 2 hours.
It includes programmable electronic pressure switch.
Adjustable regular speed.
Travel comfort comparable to an VVVF traction lift .
In compliance with Standard 81.2 A2 and A3.
Integrated double safety system.
Higher floor levelling accuracy in compliance with Standard
Possibility of using environmentally friendly fluid.

EASY KIT

Ideal for the replacement of old power units.

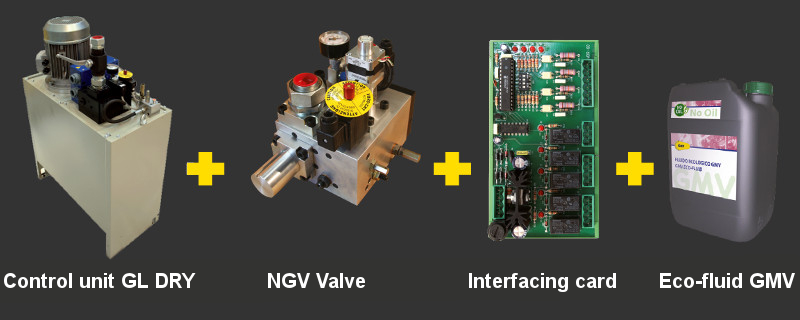

The Easy Kit consists of: Dry Power unit GL , NGV valve, interfacing card and environmentally friendly fluid.

Easy Kit main advantages:

Shorter assembly and adjustment time.
Greater safety thanks to the double closure in compliance with the new Machine Directive 2006/42/CE and the A3 Amendement to EN 81.2 Standard.
Higher floor levelling accuracy in compliance with the 81.70 Standard, thanks to NGV valve.
Lower installed power (up to 35%) ⁽¹⁾.
Energy reduction up to 25% ⁽¹⁾.
Speed up to 1 m/sec.
Running comfort similar to a VVVF traction lift.
Constant and load-independent downward speed .
Adjustable maintenance speed.
Pressure from 15 to 45 bar.
Possibility to use eco-fluid with biodegradability index > 90%. In compliance with the 2006/118/CE Directive on Environment.

⁽¹⁾ In optimal conditions and in combination with other GMV products.

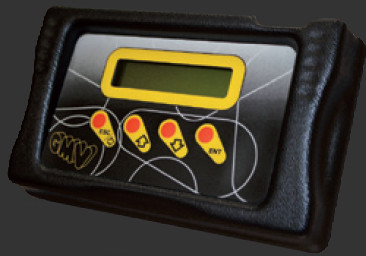

NGV programming console

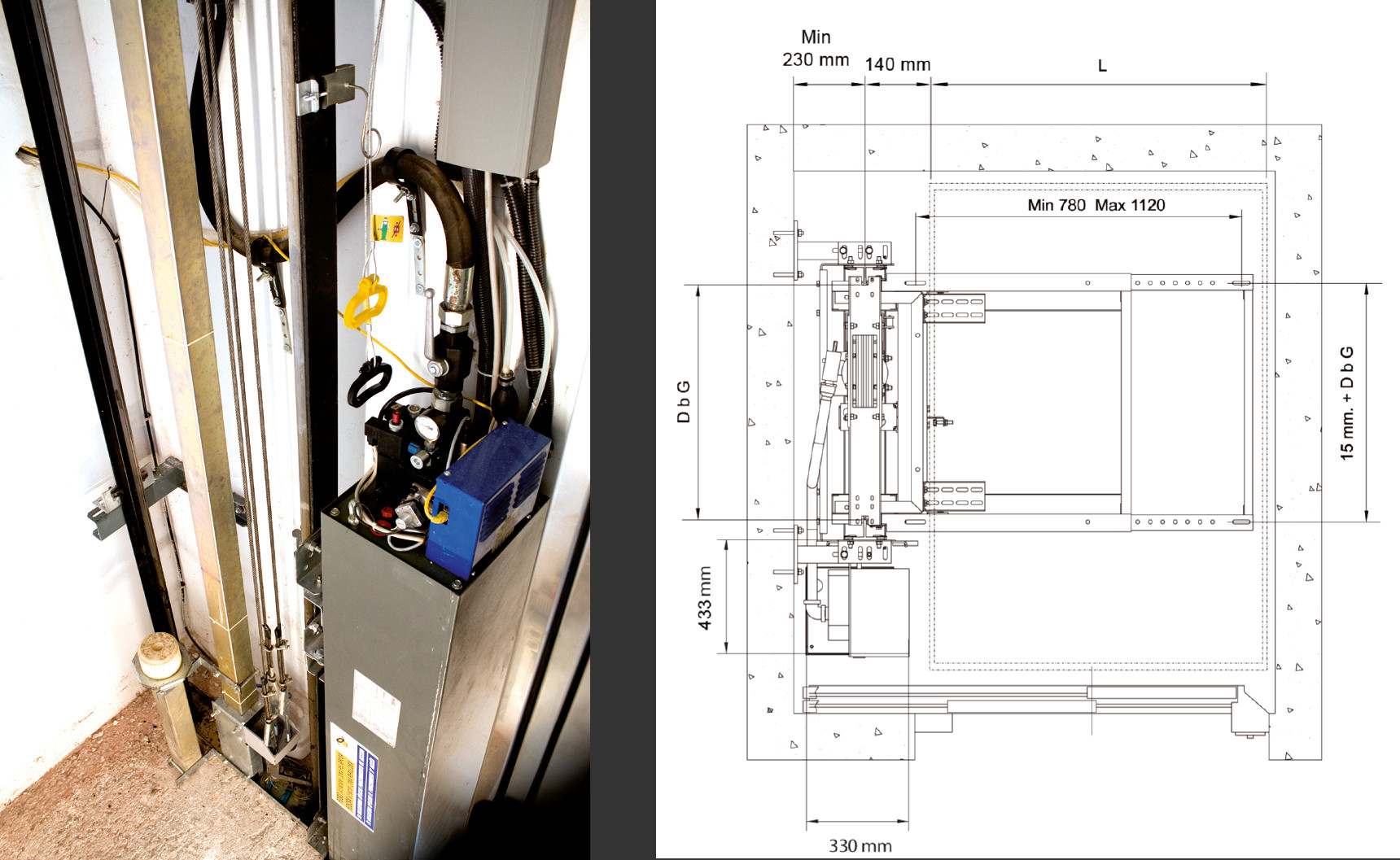

KIT A2

Fluitronic^® 2:1

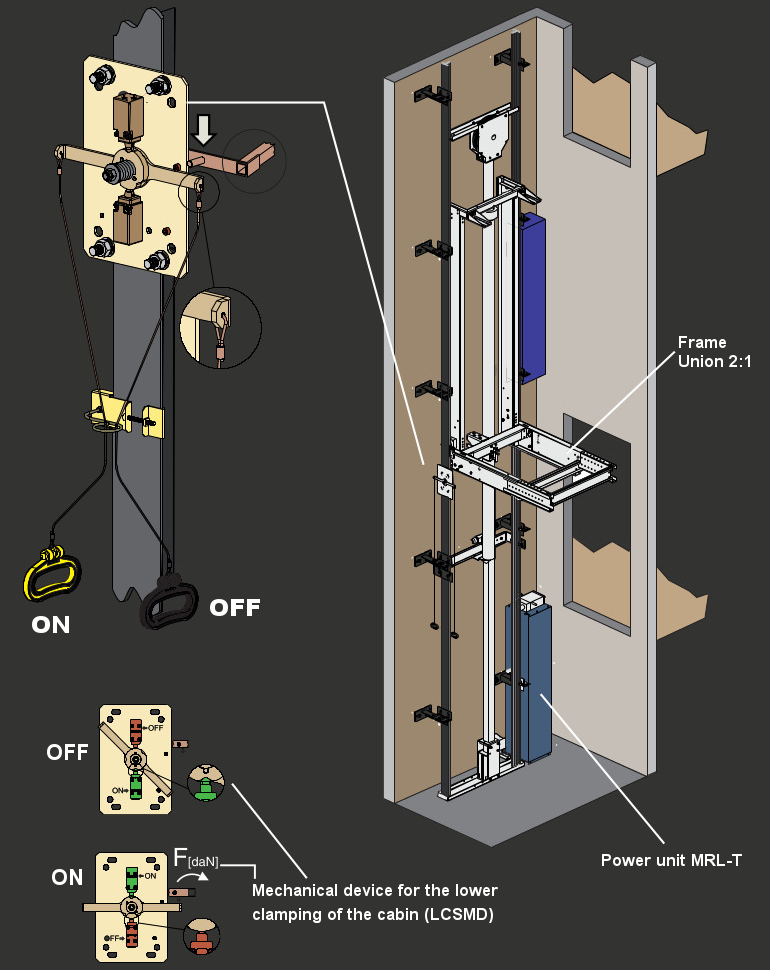

A set of components specifically designed for 2:1 MRL hydraulic lifts (machine room less), in compliance with the standards in force 81.2, A2. Ideal for modernisations.

The Kit A2 consists of:

Fluitronic^® power unit MRL-T,
NGV/3010 electronic valve unit,
1008 SL jacks,
UNION 2:1 car frame,
Mechanical device for the lower clamping of the cabin (LCSMD).

Main advantages of Kit A2:

Total use of the hoistway: no external spaces are occupied
Standard adjustments from the outside through the programming console.
It doesn’t require structural calculations.
Better comfort and levelling precision.
Minimum height of the pit reduced.
Low noise level thanks to its location.
Power installed reduction up to 40%.
Speed up to 1m/sec.
Mechanical device for the lower clamping of the cabin.
In compliance with standard EN 81.2, A2.
Easy access to the pit for maintenance.

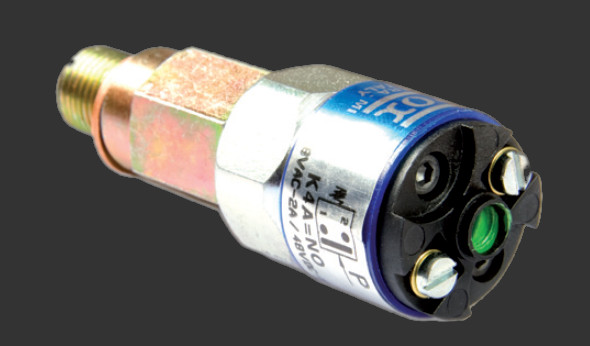

COverload pressure switch NO / NC

In compliance with EN 81-80 the cabin will be provided with an Competitive price.
Easy installation: 4 assembly stages in 2 hours.
Applicable to any kind of existing power units.
Rubber cover included.

Technical features:

Max load on the contacts:
- Alternating current 230 V - max. 3A.
- Continuous current 230 V - max. 0,1A.
Protection degree: IP 55.
Switching frequency: 200 cycles/min.
Working temperature range: -30ºC ÷ +80ºC.
Resistance: 106 manoeuvres.
Working pressure: 5 ÷ 50 bar
Max. pressure: 300 bar
Tripping accuracy: £ 2% of the adjustment pressure.
Hysteresis (average value): 1 bar.

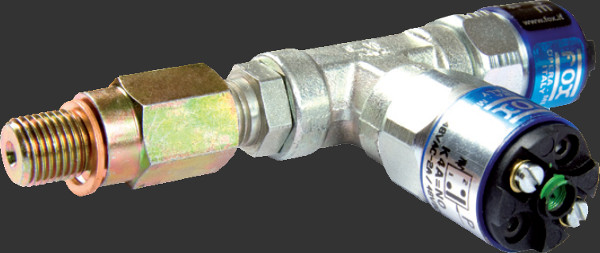

Overload and Full Load pressure switch NO

In compliance with EN 81-80 the cabin will be provided with an overload device.
Easy installation.
Applicable to any kind of existing power units GMV.
Rubber cover included.

Technical features:

Max load on the contacts:
- Alternating current 230 V - max. 3A.
- Continuous current 230 V - max. 0,1A.
Protection degree: IP 55.
Switching frequency: 200 cycles/min.
Working temperature range: -30ºC ÷ +80ºC.
Resistance: 106 manoeuvres.
Working pressure: 5 ÷ 50 bar
Max. pressure: 300 bar
Tripping accuracy: £ 2% of the adjustment pressure.
Hysteresis (average value): 1 bar.
