| VALVE BLOCKS
Fluitronic® Technology
NGV

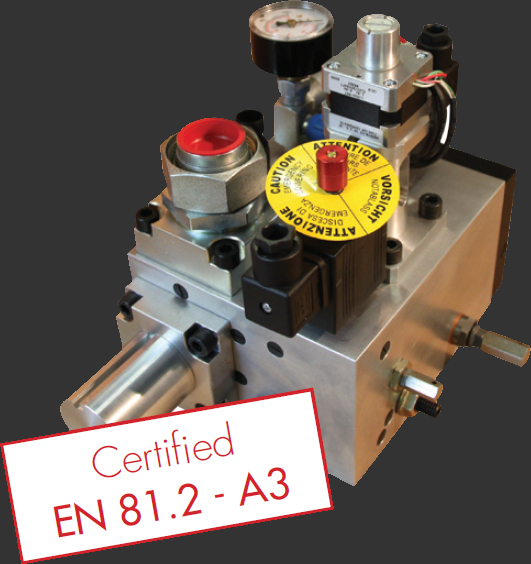

New electronic valve
Thanks to new digital technology, GMV has created a new electronic NGV valve, the most advanced system to control the elevator. It allows greater safety and comfort as well as a reduction in consumption and costs.
The NGV valve is certified to comply with the A3 Amendment; with integrated double closure there is with no need to modify other components of the lift installation.
The main advantages of the NGV valve:
- Speed up to 1m/sec with no need for any extra equipment.
- Power installed reduction up to 35%(*).
- Consumption reduction up to 25%(*) .

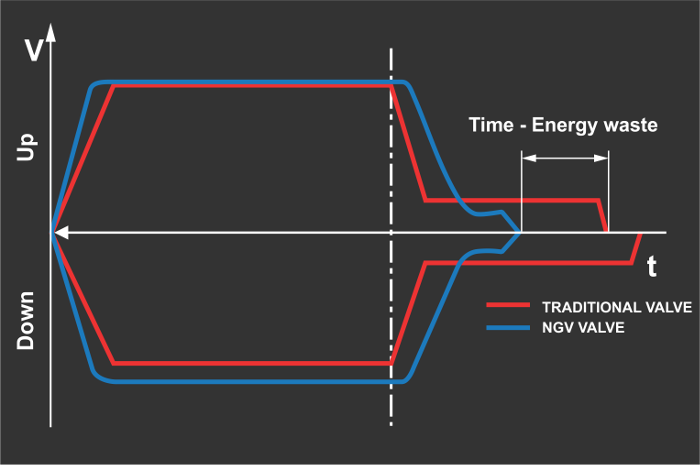

- Travel time reduction.
- Double safety system: locking and control of the VRP position.
- Higher, easier adjustment thanks to the programming console.
- No need for an oil cooler
- Adjustable maintenance speed
- Compatible with MRL installations.
- Suitable for the use of environmentally friendly fluid.
