| GREEN LIFT – TML 900 kg THREE-IN
GREEN LIFT® TML® 900 kg THREE-IN - is a non-standard passenger hydraulic lift of 900 kg (12 persons) load and three entrances to a car located at an angle of 90° and 180°. It is a smallest lift with three entrances that meets the requirements of the Polish Construction Code regarding accessibility for disabled persons.
The lift enables easy maneuvering of a wheelchair in the cabin. The dimensions: width x depth = 1,4 x 1,4 m (1,4 x 1,5 m for a the panoramic version) and the door of 0,9m width. The lift is produced up to ISO 9001 standards and meets the European Lift Directive 2014/33/EU requirements.
The lift is adapted for disabled persons

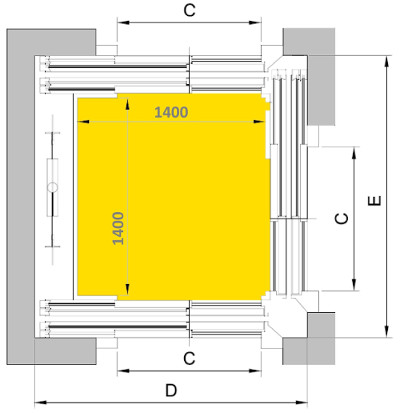

CAD / dwg drawings / dimensions
ver. 3.1 - 25.03.2015
ver. 1.1 - 02.02.2015
ver. 2.2 - 24.05.2016
ver. 3.1 - 25.03.2015
ver. 1.1 - 02.02.2015
ver. 2.2 - 24.05.2016
