| PIPE SYSTEMS POWER UNIT - PISTON

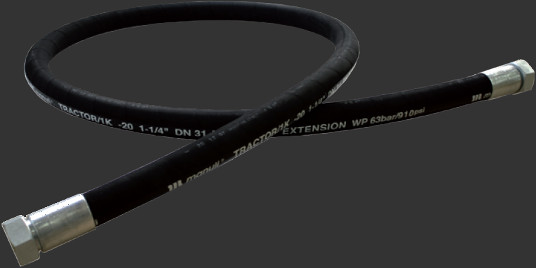

Flex piping
Flexible piping in synthetic rubber, coated with one or two layers of high resistance spiral metal meshes, with an external layer of synthetic rubber.
Available lengths: from 1,5m to 25m with increments of 0,5m.
Fittings: steel 9S Mn Pb 28.
Flex piping
Technical features:
- Working temperature: from - 40 ° C to + 100 ° C.
- Piping dimensions: ¾"(90°, DN 19), 1 "(DN 25), 1 "(DN 32), 1 "(DN 40), 2 "(DN 50).
- 2 "(DN 50) flex piping supplied with two fittings of 2".
- Minimum bending ratio: from 160 to 630 mm.
- Minimum explosion pressure: from 360 to 400 bar.
- Max. working pressure in compliance with standard EN 81.2 - §12.3.2.1: from 45 to 50 bar.

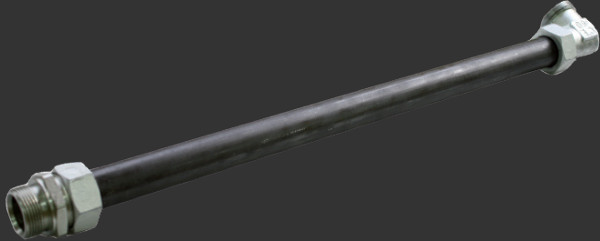

Rigid piping
The complete connection piping is supplied on the basis of the arrangement of the jack cylinder.
Rigid piping with fitting and lock ring Series L.
Developed in 5m sections.
Rigid piping
Dane techniczne:
- Rigid piping between the power unit and the pipe bursting
Piping diameter: 35 x 2.5 (Series 35), 42 x 3 (Series 42 L). - Connection piping between the pipe bursting and the piston
Pipe diameter: 30 x 3 (Series 30 S), 38 x 4 (Series 38 S) and 60 x 5 (Series 60 S). - Max. working pressure for 1-stage and telescopic pistons with mechanical synchronisation
S
eries L: from 68 to 71 bar; Series S: from 80 to 95 bar. - Max. working pressure for telescopic jacks with 3-stage hydraulic synchronisation
Series L: from 52 to 54 bar; Series S: from 61 to 73 bar.
