| OIL COOLERS

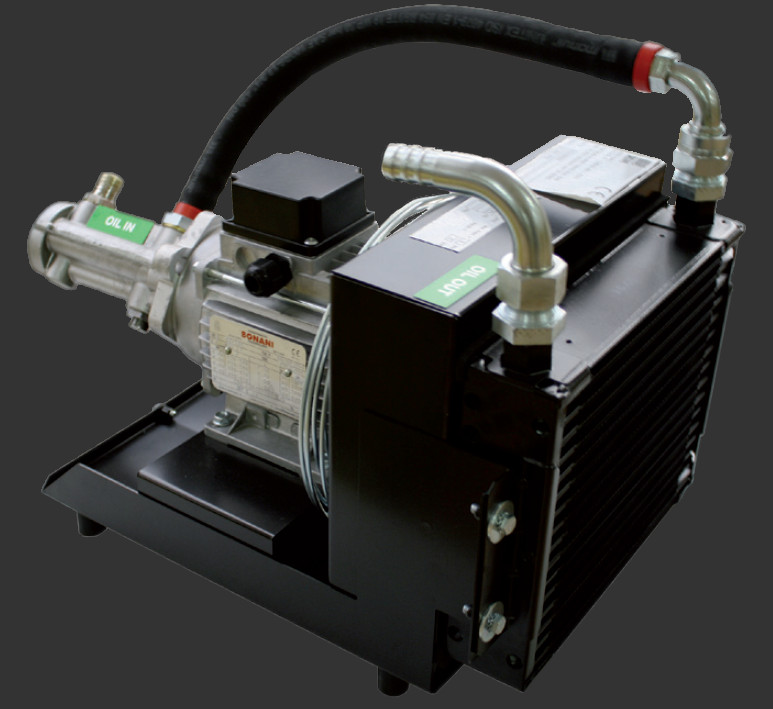

Oil cooler
Increased number of starts per hour.
Available with single-phase and three-phase motor at different voltages.
Available models: NEG 3, NEG 6, NEG 14.
Recommended for public buildings, factories and hospitals.
Technical features:
- Rated refrigeration power: from 3,49 to 16,28 kW
- Pump delivery rate: from 25 to 66 l/min
- Motor power: 0,75 kW
- Motor speed: from 1450 to 3250 rpm
- Average noise level: from 67 to 71 dB
- Working temperature range of the oil 20÷70 ºC
- Max operational pressure: 4 / 0,4 bar/MPa
- Overpressure valve adjustment: 6 / 0,6 bar/MPa
- Max. depression, suction: -0,4 bar
